Purging Methods in Rubber Autoclaves and Their Effect on Process Quality

In the vulcanization of rubber products, the autoclave process is a critical production stage in which temperature, pressure, time, and the process atmosphere are controlled in a precise manner. Especially in applications such as hoses, rubber coatings, technical rubber parts, rubber-metal bonded products, and similar products, the atmospheric conditions inside the autoclave directly affect the quality of the final product.

One of the important process steps that stands out at this point is the sweeping operation, more commonly referred to as purging. The purge process is the controlled removal of unwanted gases from the autoclave at the beginning of the process or at certain stages of the process. This operation is particularly important in steam-operated rubber autoclaves for achieving homogeneous heat transfer, balanced vulcanization, and proper crosslinking reactions in some rubber compounds.

What Is the Purge Process?

Purging is the controlled evacuation of air, non-condensable gases, or volatile components that may form in certain processes inside the autoclave. The purpose of this operation is to prepare the internal atmosphere of the autoclave for the process and to ensure that similar vulcanization conditions are achieved at every point of the products.

The process medium used in rubber autoclaves is not always the same. While direct steam is used in some systems, hot air, steam-air mixtures, inert gases such as nitrogen, or vacuum-assisted solutions may be preferred in other applications. Therefore, the purpose and application method of the purge process should be evaluated according to the type of autoclave, the rubber compound, and the process requirements.

Why Is Purging Important in Rubber Autoclaves?

In steam-operated rubber autoclaves, the main purpose of the purge process is to remove air and non-condensable gases from inside the autoclave. This is because air cannot condense like steam and therefore cannot provide high-efficiency heat transfer. Air pockets remaining inside the autoclave may prevent steam from effectively contacting the product surfaces.

This may disrupt temperature distribution inside the autoclave and prevent the required vulcanization conditions from being achieved in certain areas. As a result, hardness variations, under-curing, changes in elasticity, adhesion problems, or fluctuations in mechanical properties may occur in the products.

The importance of the purge process is not limited to heat transfer. In some rubber compounds, oxygen in the process atmosphere can directly affect the vulcanization reaction. Oxygen presence is a critical factor, especially in peroxide cure systems. Peroxides are responsible for forming the crosslinking reaction. However, if oxygen is present inside the autoclave, peroxides may react rapidly with oxygen under high temperature.

In this case, the expected level of crosslinking in the rubber may decrease. The effect is often seen as incomplete or weak vulcanization, starting from the surface and progressing toward the inner sections. Therefore, in peroxide-cured rubber compounds, the purge process is not merely an auxiliary step for removing air; it is one of the main process parameters that directly affects the mechanical and surface quality of the product.

In contrast, in sulfur vulcanization systems, the effect of oxygen may not always be equally critical. The crosslinking mechanism in sulfur-based cure systems differs from that in peroxide systems. Therefore, in some applications, oxygen removal may not be a mandatory chemical requirement. However, this does not mean that the purge process is unnecessary. In steam autoclaves, removal of air and non-condensable gases may still be important for process homogeneity.

For this reason, when evaluating the purge requirement in rubber autoclaves, not only the autoclave type but also the rubber compound and cure system used must be taken into account. In general, an oxygen-free or low-oxygen process atmosphere is considered more critical in peroxide systems, while in sulfur systems the purge requirement is evaluated mainly in terms of heat transfer, temperature homogeneity, and process repeatability.

Correct purging becomes even more critical, especially in thick-section rubber products, dense loadings, or parts with complex geometries. In such applications, the risk of air entrapment between products or on product surfaces is higher.

A properly designed purge process provides the following advantages:

• Helps remove air and non-condensable gases from inside the autoclave.
• Allows steam to contact product surfaces more effectively.
• Increases heat transfer efficiency.
• Creates a more homogeneous temperature distribution inside the autoclave.
• Provides more balanced vulcanization among products.
• Helps reduce oxygen-related crosslinking problems in peroxide systems.
• Improves process repeatability between cycles.
• Reduces quality risks and the need for rework.
• Contributes to more efficient management of energy use.

Main Purging Methods Used in Rubber Autoclaves

The purge method used in rubber autoclaves may vary depending on the process medium, autoclave design, product type, cure system used, and quality requirements. The most common methods are summarized below.

1. Displacement Method with Steam

In steam-operated rubber autoclaves, the most common purge method is to introduce steam into the autoclave and discharge the air inside through the vent line. In this method, steam is supplied into the autoclave in a controlled manner, and the air inside is removed through properly positioned vent or exhaust lines.

The aim is to replace the air in the autoclave volume with steam as much as possible. In this way, the process atmosphere is brought closer to saturated steam conditions, allowing steam to contact product surfaces more effectively.

In some steam-operated rubber autoclave processes, the purge stage is applied at a lower pressure level before reaching the main vulcanization pressure. For example, the autoclave may first be filled with steam up to approximately 2 bar, and purging may be carried out at this pressure for a certain period to remove the air inside. Then the purge line is closed, the autoclave is brought to the main vulcanization pressure, and the curing process is started.

In such applications, a purge duration of a few minutes at around 2 bar, followed by a main vulcanization cycle at approximately 10 bar, may be seen as an example. However, these values should not be considered standard for every process. The appropriate pressure, duration, and tolerances should be determined according to product geometry, rubber compound, autoclave volume, loading density, steam capacity, and process validation results.

The effectiveness of this method depends on the location of the steam inlet points, the placement of the exhaust line, the autoclave geometry, the loading arrangement, and the purge duration. If the steam inlet and exhaust points are not designed correctly, short-circuit flow may occur inside the autoclave. In this case, steam may flow directly toward the exhaust line while air remains in certain areas of the autoclave.

In the steam displacement method, introducing steam from the lower section of the autoclave may provide an advantage. Using a distribution pipe to ensure balanced distribution of steam along the active length of the autoclave helps sweep out air and non-condensable gases more effectively. With such a design, steam is distributed more evenly throughout the autoclave instead of entering intensely from a single point.

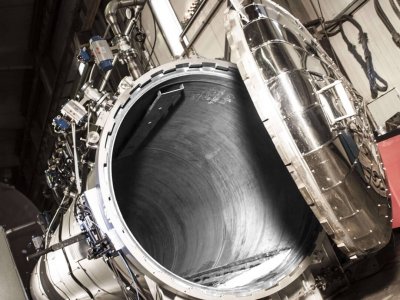

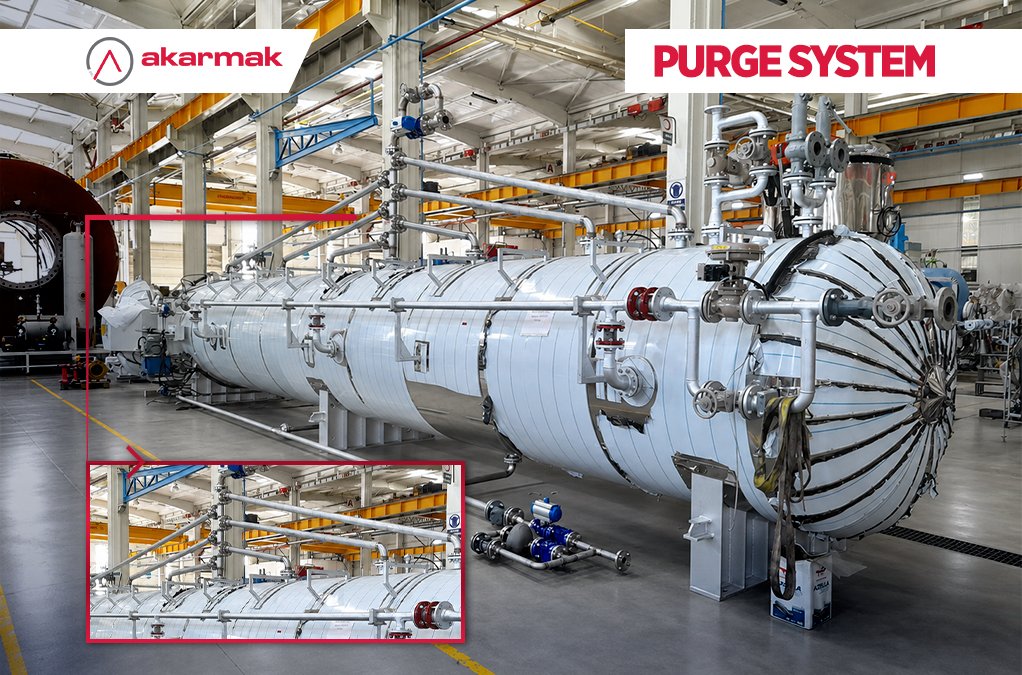

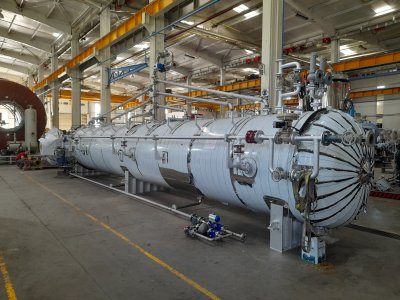

On the exhaust side, it is important that purge and exhaust lines are positioned to sweep the areas inside the autoclave where air may accumulate. In large-volume autoclaves, a single exhaust point may not always be sufficient. Using multiple purge or exhaust nozzles can help create a more balanced flow, especially in the front, middle, and rear sections. Positioning the front and rear exhaust points close to the autoclave ends reduces the risk of air remaining in dead zones.

2. Continuous or Stepwise Purging with Controlled Venting

In some processes, purging is not applied only for a short period at the beginning of the cycle. During a certain part of the heating stage, the exhaust line may be kept open in a controlled manner so that the removal of air and non-condensable gases continues.

This method may be preferred especially in large-volume autoclaves or dense loadings to create a more balanced process atmosphere. In controlled venting applications, the exhaust valve may be operated for specified durations, at specified opening ratios, or according to certain temperature-pressure conditions.

The important point here is to determine the purge duration and vent opening correctly. Excessively long or uncontrolled purging may cause steam and energy losses. Insufficient purging, on the other hand, may lead to air remaining inside the autoclave and deterioration of temperature homogeneity.

In controlled purge applications, selecting valves that can provide proportional control when necessary, rather than operating only with an on-off logic, is beneficial for process stability. Especially in applications where the purge pressure must be kept within a certain range, the purge and steam inlet valves must operate in harmony with each other.

The general logic of such a cycle may proceed as follows: The autoclave door is closed, and after safety conditions are met, the steam inlet valves are opened. While the purge line is open, the autoclave is brought to the specified purge pressure. At this pressure, the evacuation of air and non-condensable gases continues for the specified period. When the purge duration is completed, the purge valve is closed, and the autoclave is raised to the main vulcanization pressure. When the vulcanization time is completed, steam inlet is shut off, and the pressure is discharged in a controlled manner through the exhaust line.

3. Pressurization and Exhaust Cycles

In some rubber processes, the autoclave is pressurized up to a certain pressure with steam, air, or inert gas and then discharged in a controlled manner. This operation is repeated one or several times to gradually replace the atmosphere inside the autoclave.

Pressurization and exhaust cycles may be useful, especially in complex loadings where the risk of air entrapment between products is high. Each cycle helps reduce the amount of unwanted gas remaining inside the autoclave.

However, this method is not a standard requirement for every rubber process. The decision to use this application should be made by evaluating product geometry, autoclave volume, process duration, energy consumption, and quality expectations together.

4. Vacuum-Assisted Purging

In the vacuum-assisted purge method, the air inside the autoclave is removed by vacuum before the process begins. Then steam, hot air, nitrogen, or another process gas is introduced to bring the autoclave to operating conditions.

This method is a highly effective solution for removing air. It may be preferred especially for sensitive technical rubber parts, products with complex geometries, or applications where atmosphere control is critical.

However, vacuum-assisted systems require additional equipment, high sealing sensitivity, and a more advanced control infrastructure. Therefore, they are not used as standard in every rubber autoclave. Investment cost, process requirement, and product quality expectations should be evaluated together.

5. Purging with Inert Gas

In some special rubber applications, purging may be performed with inert gases such as nitrogen to reduce oxidation or to make the process atmosphere more controlled.

In inert gas purge applications, the aim is to reduce the oxygen level inside the autoclave and process the product in a more controlled atmosphere. This application differs from classical steam purging. Here, the main objective is not only to improve heat transfer but also to control the chemical effect of the process atmosphere.

Therefore, in systems using inert gas, gas flow rate, exhaust arrangement, oxygen level, process safety, and the control system must be designed carefully.

6. Purging in Hot Air and Air-Circulation Systems

In hot air, electric resistance, thermal oil heat exchanger, or fan-circulated autoclaves, the concept of purging should be evaluated differently from steam systems. In these systems, the process medium may already be air. Therefore, the purpose of purging is not always to “remove air.”

In hot air autoclaves, purging may be applied to renew the atmosphere before the process, reduce humidity, remove volatile components, or provide safe ventilation after the process.

In such systems, temperature homogeneity is mainly achieved through fan circulation, air ducts, loading arrangement, heater placement, and the control system. Therefore, in hot air systems, the purge process should not be evaluated with the objective of creating a saturated steam atmosphere as in steam-operated autoclaves.

Effects of Insufficient Purging on Product Quality

Insufficient application of the purge process may lead to significant quality problems, especially in steam-operated rubber autoclaves. Air and non-condensable gases remaining inside the autoclave may prevent steam from reaching the products homogeneously.

In peroxide cure systems, insufficient purging may negatively affect not only heat transfer but also the crosslinking reaction. Oxygen remaining inside the autoclave may reduce the effectiveness of peroxides and increase the risk of under-curing starting from the rubber surface. This may create noticeable effects on surface appearance, hardness, elastic recovery, and mechanical strength.

In this case, the following problems may occur:

• Incomplete or uneven vulcanization in products
• Regional differences in hardness values
• Variability in elasticity and mechanical strength
• Adhesion problems in rubber-metal or rubber-fabric structures
• Surface quality problems
• Dull, rough, or non-homogeneous product surface
• Deterioration in compression set performance
• Deviations in tensile strength and elongation values
• Quality differences between products
• Extension of process time
• Increase in energy consumption
• Reduction in repeatability between cycles

To evaluate insufficient purge performance, looking only at process records may not be enough. Certain checks performed on the product provide important clues about purge and vulcanization quality. In well-vulcanized products, the surface is expected to be smooth, homogeneous, and glossy. Dullness, roughness, or regional appearance differences on the surface may indicate that the process atmosphere has not been controlled sufficiently.

One of the simple field checks is the fingernail test. In a product with weak vulcanization performance, when pressure is applied to the surface with a fingernail, the mark may remain for a longer time. This provides a quick preliminary idea about the elastic recovery capability of the product. However, this test alone is not sufficient for decision-making; it should be used only for initial evaluation.

For more reliable evaluation, hardness measurement, tensile-elongation tests, and compression set tests should be used. A hardness value below the expected limits may indicate a low crosslinking level. Tensile and elongation tests are important for understanding whether mechanical properties have been affected by the process. The compression set test is a strong indicator of vulcanization quality because it evaluates the rubber’s ability to recover after deformation under load.

Therefore, the purge process should not be considered merely an auxiliary operation performed at the beginning of the cycle. A properly designed purge strategy is an important process parameter that directly affects vulcanization quality.

Points to Consider in Purge Design

For an effective purge process, simply opening the exhaust valve is not sufficient. The autoclave design, piping arrangement, process recipe, loading method, condensate management, and control system should be evaluated together.

The main points to consider are as follows:

• Steam or gas inlet points should feed the internal volume of the autoclave effectively.
• Introducing steam from the lower section of the autoclave and distributing it evenly along the active length may increase purge efficiency.
• The use of a distribution pipe helps steam spread more homogeneously throughout the autoclave.
• Exhaust lines should be positioned to sweep the areas where air and non-condensable gases may accumulate.
• In large-volume autoclaves, using multiple purge or exhaust nozzles may provide more balanced evacuation.
• Placing front and rear exhaust points close to the autoclave ends may reduce the risk of air remaining in dead zones.
• Inlet and outlet points should be planned correctly to prevent short-circuit flow.
• Purge valves and steam inlet valves should be selected with sufficient capacity and precision to control process pressure properly.
• Sufficient space should be left between products to allow steam, air, or gas circulation.
• Purge duration, purge pressure, and vent opening should be clearly defined in the process recipe.
• Condensate drainage should be managed correctly.
• The correct balance should be established between energy loss and air removal efficiency.
• Homogeneity tests and process validation should be performed in large-volume or densely loaded autoclaves.

Condensate management should also be addressed separately in terms of purge and overall vulcanization quality. At the beginning of the cycle, condensation naturally occurs due to temperature differences between the autoclave walls, mandrels, trolleys, and products. However, water accumulating in the vulcanization chamber may consume steam energy and disrupt the heat transfer balance. This may cause both higher steam consumption and a lower level of vulcanization in the products.

Therefore, correct positioning of condensate drain lines, regular operation of drain valves, and prevention of blockages in the piping are important in autoclaves. Contamination, scaling, or valve sticking in the condensate system may reduce drainage performance over time. This may lead to water accumulation in the process, deterioration of temperature distribution, and fluctuations in product quality.

Purge performance is not a subject that should be validated only during initial commissioning. The same performance must be maintained throughout the operating life of the system. Valve replacement, piping modifications, changes in nozzle placement, or adjustments to process pressure or purge duration may affect purge efficiency. Therefore, even after seemingly minor changes, the process should be checked again and validated if necessary.

The same approach also applies to maintenance activities. Over time, mineral residues, chemical residues released from rubber, release agent residues, rust, dust, and dirt may accumulate on the internal surfaces of the autoclave. This layer may both increase the risk of corrosion and change heat transfer behavior. In addition, contaminated surfaces carrying high energy may cause the process to proceed differently than expected in certain areas. Therefore, cleaning the internal surfaces of the autoclave, checking condensate lines, performing valve function checks, and comparing sensor readings should be part of the regular maintenance plan.

Process traceability is also an important part of purge control. Purge pressure, purge duration, main vulcanization pressure, temperature curve, valve movements, alarm records, and cycle results should be recorded as much as possible. These records provide important data for evaluating repeatability between cycles and facilitating root cause analysis in the event of quality problems.

Conclusion

In rubber autoclaves, the purge process is a critical step in properly preparing the process atmosphere and ensuring product quality. Especially in steam-operated vulcanization autoclaves, the main purpose of purging is to remove air and non-condensable gases from inside the autoclave so that steam can effectively contact the products.

However, the purge process should not be evaluated only in terms of heat transfer. In peroxide-cured rubber compounds, oxygen in the autoclave atmosphere may adversely affect the crosslinking reaction. Therefore, in some processes, purging also plays a decisive role in the chemical curing quality of the product.

However, the purge method is not the same in every autoclave. In steam systems, hot air systems, processes using inert gas, or vacuum-assisted applications, the purpose and method of purging may vary. Similarly, purge requirements in peroxide and sulfur cure systems should be evaluated based on different reasons.

The correct purge strategy should be determined by considering the product type, rubber compound, cure system, autoclave volume, loading arrangement, process temperature, process pressure, heating medium used, and equipment design.

A properly designed, controlled, and regularly validated purge process provides more homogeneous temperature distribution, more balanced vulcanization, lower quality risk, more efficient energy use, and higher process repeatability.
