The Effect of Loading on Process Quality in Laminated Glass Autoclaves

In laminated glass production, the autoclave process is one of the critical stages in which glass layers and interlayer materials such as PVB, SGP, etc. are permanently bonded under controlled temperature and pressure. In this process, the autoclave loading arrangement directly affects the final product quality as much as temperature, pressure, duration and cooling characteristics.

Autoclave loading covers variables such as the position of the glass on the autoclave trolley, the distance between products, load distribution, support method and the planning of gaps that allow air flow. In practice, while it is generally recommended to leave a gap of 20–30 mm between glass packages to support air circulation, this distance may increase to 50–100 mm for large-sized products or products with high thermal mass. Instead of concentrating heavy glass in a single area, distributing it evenly along the trolley and planning support points at intervals of approximately 500–800 mm is important for process stability.

These values may vary depending on the autoclave diameter, fan capacity, glass dimensions, glass thickness and the trolley design used. Therefore, the given ranges should not be evaluated as a definite process recipe, but as a general engineering reference for loading design. The main objective is to ensure that all products within the load are exposed to similar process conditions.

In order for glass packages to reach the target temperature in a controlled and homogeneous manner, air circulation inside the autoclave must be uninterrupted. Especially in architectural glass production, 6+6 mm, 8+8 mm or 10+10 mm laminated glasses and 12+12 mm and above multilayer safety glasses may show different heating behaviors within the same load. Products with higher thermal mass reach the target temperature later, while thinner products react more quickly to temperature changes.

A similar situation is also observed in other laminated glass applications. In automotive glass, windshields generally consist of two thin glass layers and a PVB interlayer, while panoramic roof glasses with different geometries or special functional glasses may exhibit different thermal behavior. In ballistic glass applications, depending on the protection level, the total glass thickness can often start from 30 mm and exceed 100 mm. This high thermal mass requires the heating and cooling processes to be managed more carefully compared to standard architectural glass.

For this reason, instead of randomly loading products with different thicknesses, weights and geometries, it is preferred to group glasses with similar thermal properties. Positioning large-sized glass in a way that does not completely block air flow, distributing high-weight products evenly on the trolley and preserving flow channels that allow air circulation are critically important for process homogeneity.

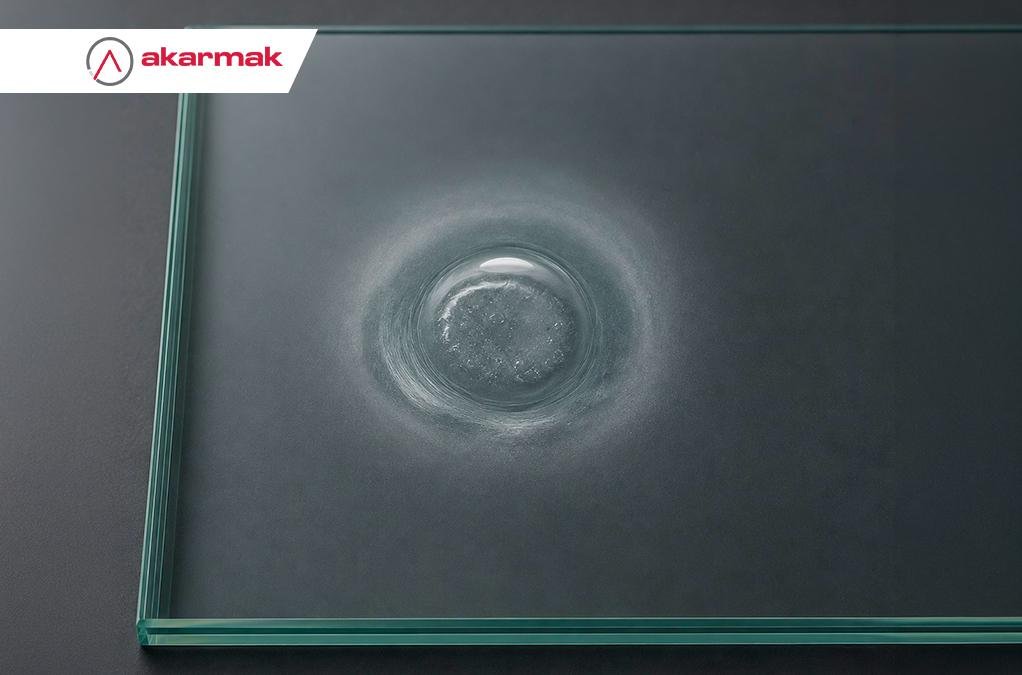

Insufficient spacing or incorrect load distribution may restrict hot air flow and cause some products to reach the target temperature later than others. This situation makes it difficult for the interlayer material to reach the target temperature range at the same time across the entire surface and may negatively affect adhesion quality. As a result, quality problems such as bubble formation, local haze, optical distortion, edge opening and delamination may occur. In addition, non-homogeneous heating and cooling increase the risk of thermal stress formation in glass packages.

When creating the loading arrangement, not only heat transfer but also mechanical stability should be taken into account. Glass packages exposed to temperature changes and pressure effects throughout the process may be subjected to local stresses due to insufficient support or incorrect contact points. This situation increases the risk of breakage, especially in tempered, heat-strengthened, curved or large-sized glass. Support elements must carry the glass weight evenly, prevent products from contacting each other and ensure that they remain stable throughout the process.

Especially when large-sized architectural glasses, multilayer safety glasses, automotive glasses and high-weight ballistic glasses are involved, the loading plan should not be made only according to capacity utilization. Maximum filling does not always mean optimum process. In many cases, an arrangement that preserves air circulation, correctly plans the distance between products and distributes the load evenly provides better results than a more fully loaded but irregular arrangement.

As a result, the autoclave loading arrangement has a direct effect on heat transfer, air circulation, thermal mass management, mechanical stability and process repeatability. A correctly designed loading arrangement provides a lower scrap rate, more stable adhesion quality, better optical performance and higher process reliability. In laminated glass production, the objective is not only to maximize autoclave capacity utilization, but to ensure that each product is exposed to controlled, homogeneous and repeatable process conditions.
