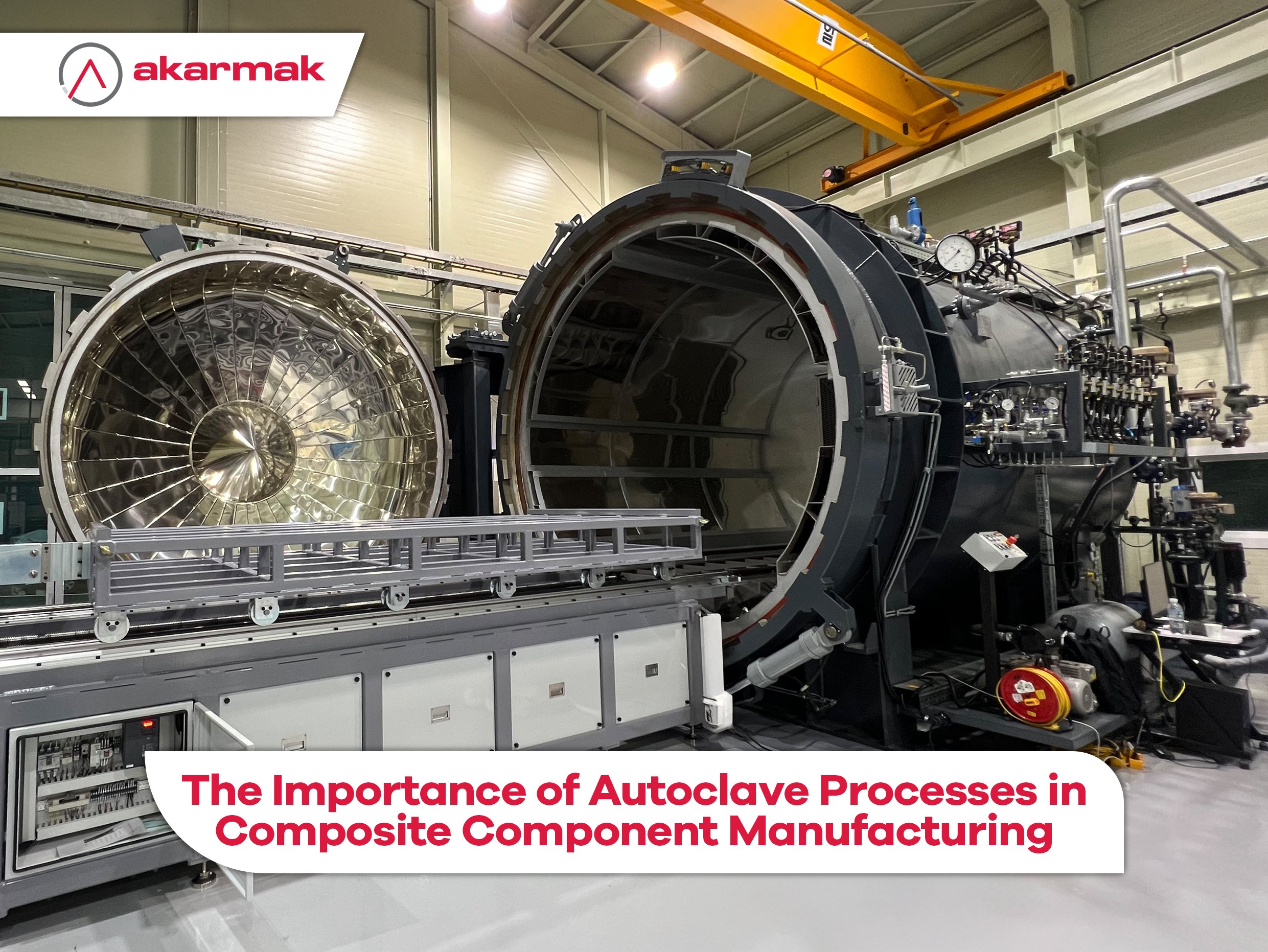

The Importance of Autoclave Processes in Composite Part Manufacturing

Lightweight design, high strength, long service life, and reliability have become increasingly critical requirements in today’s industrial applications. Among the material groups capable of meeting these demands simultaneously, composite materials stand out. However, the performance offered by composites does not depend solely on the selected fiber and resin system; the manufacturing process is a fundamental factor that directly determines the mechanical properties, tolerances, and repeatability of the final product. The same material system, when processed using different manufacturing methods, can yield entirely different quality levels.

In composite part manufacturing, various methods are preferred depending on the intended application, part geometry, expected performance, and production volume. Open-mold techniques such as hand lay-up are suitable for prototyping and low-volume production due to their low investment cost and flexibility. However, in these methods, quality largely depends on operator experience, and repeatability is limited.

Processes such as vacuum infusion, RTM, and VARTM enable more controlled resin distribution, resulting in more homogeneous structures. Thanks to closed-mold systems, surface quality and dimensional accuracy are improved, while operator influence is partially reduced. Nevertheless, in all of these methods, resin flow occurs during manufacturing and the applied pressure levels are limited. This creates inherent constraints on fiber volume fraction, porosity, and mechanical performance.

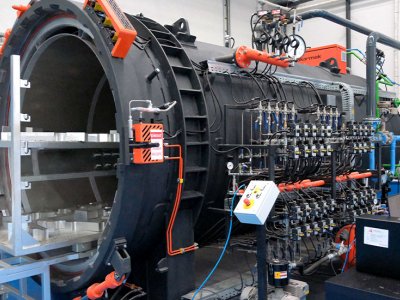

Autoclave composite manufacturing has been developed particularly for applications requiring high performance. In this process, pre-impregnated (prepreg) materials are generally used, and curing is carried out under controlled temperature and high pressure. By applying both vacuum and external pressure simultaneously within the autoclave, resin is optimally distributed between the fibers while air voids are minimized.

In autoclave production, fiber volume fractions typically reach the range of 60–70%. In contrast, in methods such as vacuum infusion and RTM, this ratio generally remains at 45–55%. When porosity levels are examined, values below 1% can be achieved in autoclave manufacturing, whereas in out-of-autoclave processes, porosity typically ranges between 3–6%. These differences directly impact mechanical strength, fatigue life, and overall part reliability.

Autoclave processes enable manufacturing within tight tolerances and allow the same quality level to be maintained across different production batches due to their high level of process control. Cure temperatures, pressure profiles, and cycle durations are recorded, ensuring full traceability. This feature is particularly critical for sectors such as aerospace and defense, where certification requirements are stringent.

As composite part thickness increases, the pressure required to sufficiently consolidate fiber layers and evenly distribute resin between them also increases. In processes based on vacuum or atmospheric pressure, this pressure requirement eventually becomes physically unattainable. This leads to increased risk of internal porosity and inconsistencies in mechanical properties, particularly in thick-section parts.

The high and uniform pressure applied in an autoclave environment makes it possible to obtain a homogeneous structure even in thick-section components. Thanks to the closed and controlled volume of the autoclave, temperature, pressure, and air circulation are evenly distributed throughout the part. Local temperature and curing variations that are inevitable in ovens or open systems are minimized within an autoclave, providing a predictable and repeatable curing environment.

In composite part manufacturing, the choice of production method is a strategic decision that directly affects not only production costs but also product performance, reliability, and the total risk throughout its entire life cycle. While hand lay-up, infusion, and RTM methods may provide sufficient solutions for certain applications, these techniques reach their natural limits in cases where part thickness increases and tight tolerances and high mechanical performance become mandatory.

At this point, autoclave manufacturing stands out not only as a technical advantage but also as a risk-minimizing production approach, offering higher fiber volume fraction, lower porosity, superior repeatability, and full traceability. Especially for thick-section and high-value composite parts, autoclave processes have become the industry standard by delivering a predictable and sustainable solution that leaves quality to nothing by chance.
